Custom Mica Board Manufacturer: How to Evaluate a Supplier for Electrical Insulation

Key takeaways

• A capable custom mica board manufacturer should help you translate operating conditions (voltage, temperature, environment) into the right mica type, binder system, and thickness—then machine parts to drawing without surprises.

• “Customization” isn’t just shape. It’s also process selection (CNC vs punching vs waterjet/laser), tolerance control, and how the supplier prevents delamination, edge chipping, and microcracking.

• For procurement, the fastest way to de-risk the source is to standardize what you ask for: traceability, inspection plan, and the exact documentation package you’ll need for approvals.

When you’re sourcing electrical insulation consumables, mica board often sits in the uncomfortable intersection of high-temperature performance, high-voltage safety, and precision machining—and it’s exactly where an electrical insulation consumables supplier can either make your program stable or create months of rework. That’s why supplier selection matters: the wrong manufacturing route (or inconsistent process control) can show up months later as cracks, delamination, or assembly issues.

This buyer’s guide is written for engineering and procurement teams at switchgear, transformer, motor/generator, and industrial heating equipment manufacturers—especially when you need custom mica parts for switchgear transformers motors, not a catalog sheet.

Why “custom” matters for mica board in electrical insulation

Rigid mica board (also called rigid mica sheet or mica plate) is chosen because it can combine dielectric insulation with thermal resistance and mechanical stability in harsh environments. Industry references consistently point to its use across electrical equipment and high-temperature assemblies—where insulation can’t soften, creep, or carbonize under load.

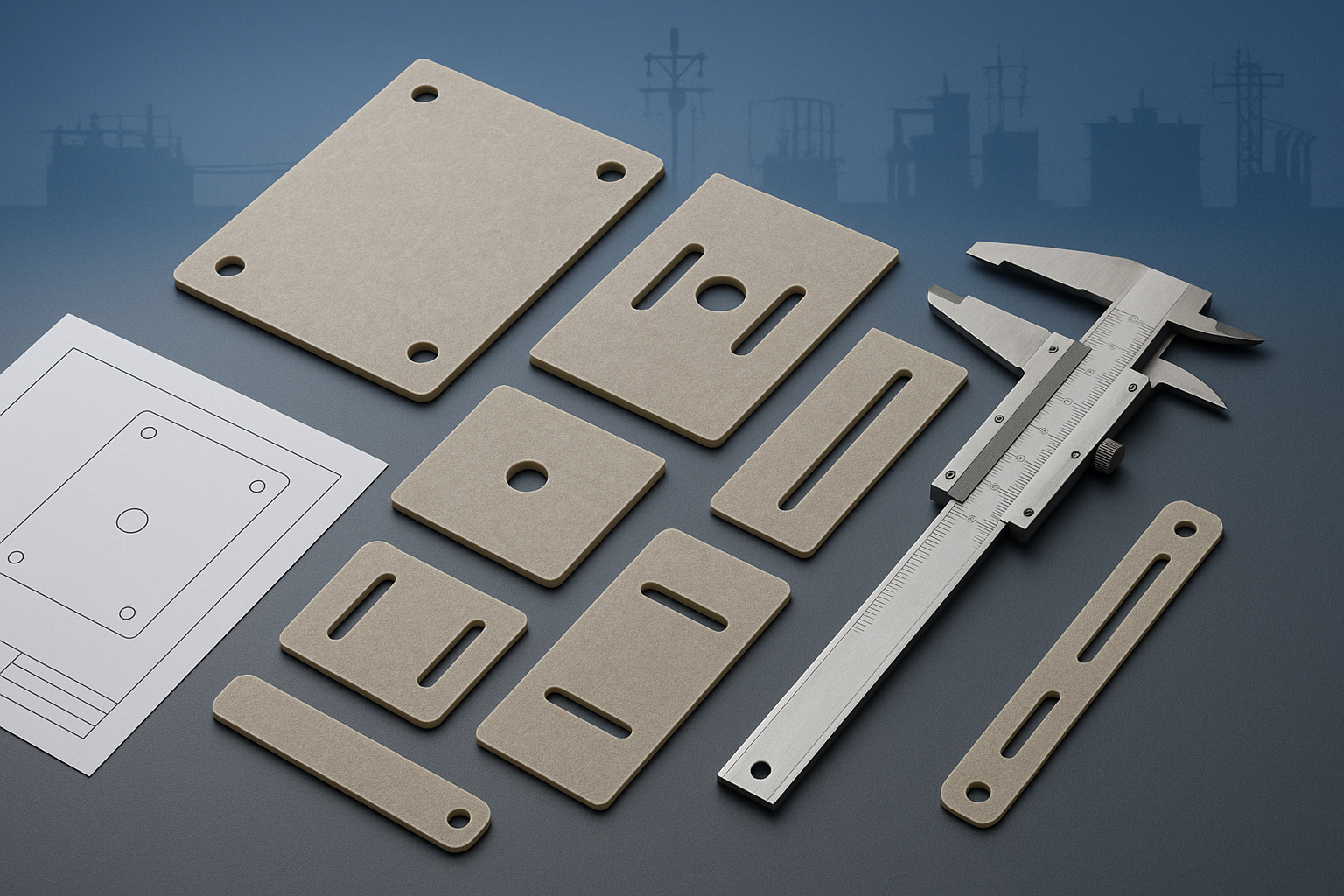

But many applications aren’t “sheet sized.” They’re:

• slotted barriers

• terminal boards

• coil supports

• arc-chute and insulation structures

• washers, spacers, and complex insulating frames

Those parts have functional requirements (clearances, creepage distances, compression fit, fastening points), so your supplier’s ability to machine to drawing—including consistent mica board CNC cutting for slots, profiles, and mounting features—is often more important than the generic base material.

Step 1: Confirm material fit before you compare manufacturers

A lot of sourcing problems that look like “manufacturing defects” are actually material-selection mismatches—especially when thermal cycling, vibration, humidity, or arc exposure are involved.

At minimum, align on three inputs before you request quotes:

Mica type

Many technical guides distinguish between mica families (commonly muscovite vs phlogopite) based on the balance of dielectric vs thermal priorities. A solid overview is covered in

ISOmaterial’s “mica insulation materials” guide (2025).

Binder system and construction

Rigid mica boards can be resin-bonded or otherwise compounded. Your operating environment (temperature peaks, continuous temperature, moisture exposure) often dictates what binder system makes sense.

If you need deeper background on why mica is widely used in electrical insulation, the academic perspective in “Mica/Epoxy-Composites in the Electrical Industry” (PMC, 2016) is a useful, non-vendor reference.

Thickness and mechanical intent

Rigid board is frequently selected when the part must hold shape under compression (spacers, supports, barriers). Thickness impacts both mechanical strength and which machining methods are practical.

Pro Tip: If your part has tight tolerances, don’t just specify thickness—describe the assembly method (screw torque, compression fit, clamping area) so the supplier can propose edge treatments and machining strategy.

Step 2: Evaluate machining capability (CNC vs punching vs waterjet/laser)

Mica is layered and brittle, which makes rigid mica sheet machining strategy a first-class quality variable—especially around holes, slots, thin ribs, and internal corners.

A practical way to evaluate any custom mica board manufacturer is to ask: Which process do you recommend for our thickness, geometry, and annual volume—and why? If the answer is vague, that’s a procurement risk.

One useful benchmark-style breakdown is BeePlastic’s “mica machining methods by thickness and batch size” page, which maps common processes to thickness bands and production volumes.

A quick process-selection matrix you can use

The point isn’t the exact method—it’s whether the supplier can explain the trade-offs and demonstrate control.

Step 3: Ask how they prevent delamination, cracks, and edge chipping

For procurement teams, “quality” needs to be translated into failure modes. With mica board, common concerns include delamination, microcracking, surface flaws, and brittle edge damage—especially when parts have holes or narrow webs.

A manufacturer worth qualifying should be able to describe:

• how they select tooling and feeds/speeds for brittle, abrasive laminates

• how they manage dust extraction and part handling (to prevent damage after machining)

• what inspection checks are applied to high-risk features (holes, slots, thin ribs)

• how they handle nonconformities and traceability

⚠️ Warning: If your drawing includes sharp internal corners, thin ribs, or closely spaced holes, ask for a manufacturability review. Small geometry changes can dramatically reduce cracking risk without changing electrical performance.

Step 4: Treat documentation as a deliverable, not a “nice to have”

If you’re an EU procurement manager—or you supply into regulated end markets—documentation is often the gating factor.

A simple starting checklist of what buyers commonly look for is summarized in Axim Mica’s “criteria for choosing a mica manufacturer” article. Even if you don’t use their criteria exactly, the framing is helpful: supplier certification, product compliance expectations, and proof packages.

In your RFQ, explicitly request the documentation you need for approval, such as:

• material datasheet for the exact grade/construction

• lot traceability (batch/lot coding and retention)

• inspection records for critical dimensions

• RoHS/REACH declarations when required by your product

• change-control expectations (what triggers re-approval)

If a supplier can’t commit to a consistent documentation package, you’re likely to pay for it later—in revalidation work or delayed approvals.

Step 5: Verify prototype-to-volume scaling and lead-time discipline

Engineering teams often need a small prototype run (for fit check and electrical validation), but procurement needs confidence that the same supplier can scale into repeatable production.

When comparing suppliers, ask:

• What is the typical path from prototype to volume (and what gates exist)?

• What changes when volume increases—process, tooling, inspection, packaging?

• How do you manage lead time for custom parts (raw material, machining capacity, tooling)?

• Do you support buffer stock or scheduled releases for recurring insulation consumables?

These are the questions that separate “can quote” from “can supply.”

A comparison table: what a capable custom mica board manufacturer should offer

Use this matrix in supplier qualification meetings. It’s intentionally practical—each row can become a yes/no line item in your vendor audit.

RFQ checklist: what to send to get accurate quotes (and fewer surprises)

If you want comparable quotes across suppliers, standardize the input.

Send these items

• 2D drawing + 3D file when available (DXF/DWG/STEP)

• critical dimensions and tolerances (call out what truly matters)

• edge/finish requirements (if any)

• operating conditions: voltage, continuous and peak temperature, environment (humidity, dust, vibration)

• assembly intent: fastening method, torque, compression area

• annual demand + target batch sizes

• required documentation package

Ask these questions

• Recommended process and why (CNC vs punching vs waterjet/laser)

• Expected scrap rate and how it’s controlled for your geometry

• Inspection method for high-risk features (holes/slots/thin ribs)

• Packaging and handling to prevent edge damage in transit

• Change-control policy (material/process changes)

Example: deep customization at Yinlong Insulation

If you’re evaluating manufacturers that can handle deep customization, Yinlong Insulation positions itself as a custom insulation materials manufacturer with CNC and precision production lines, supporting tailored dimensions, shapes, and material options.

In practical terms, for procurement this kind of supplier fit is strongest when you need:

• parts made to drawing (holes, slots, contours)

• fast iteration from prototype to stable production

• consistent documentation and after-sales technical support

As always, validate fit by requesting a drawing review and confirming the documentation package in writing.

FAQ

1) What’s the difference between mica sheet and mica board?

In many industrial contexts, “mica board” refers to rigid mica-based sheets/plates designed for higher mechanical strength and dimensional stability, while “mica sheet” can be used more broadly. Confirm the exact construction and binder system with the supplier, not just the label.

2) When should we choose CNC machining instead of punching?

If the part is thicker, has complex geometry, or needs tight tolerances around holes and slots, CNC machining is often more appropriate. For simple shapes at high volumes on thinner material, punching can be cost-effective.

3) What are common quality defects in rigid mica insulation parts?

Procurement teams often watch for delamination, microcracking, edge chipping, and surface flaws—especially around tight features. Ask what process controls and inspections the supplier uses for these failure modes.

4) How do we compare suppliers without getting lost in marketing claims?

Use a fixed evaluation matrix (process capability, QC, documentation, lead time) and make each item evidence-based: what documents, what inspections, what controls, what lead time commitment.

5) What documents should we request for supplier qualification?

At minimum, request the material datasheet for the exact grade, traceability approach (lot/batch), inspection records for critical dimensions, and any required compliance declarations for your end market.

6) How can we reduce cracking risk in custom mica parts?

A manufacturability review can help: easing sharp internal corners, adjusting hole spacing, or modifying thin ribs can reduce stress concentration. This is why engineering support during quoting matters.

Next steps

If you’re comparing suppliers right now, the fastest de-risking move is to ask for a drawing review before you request final pricing.

• Prepare your drawing pack (2D + 3D), operating conditions, and documentation requirements.

• Request a prototype run sized for validation, then lock the process before scaling volume.

If you need a second set of eyes on manufacturability and supplier-fit, request a drawing review and sample plan from your shortlisted custom mica board manufacturer.
